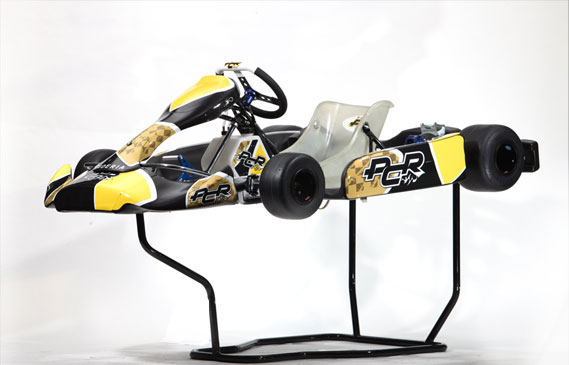

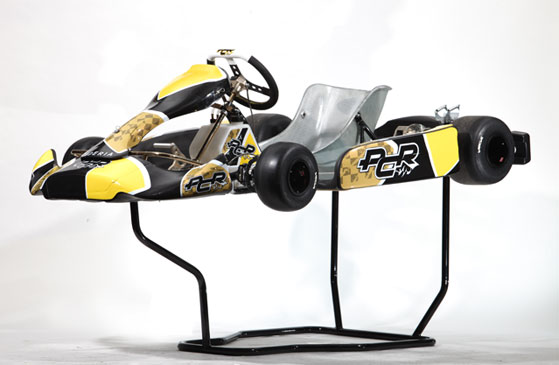

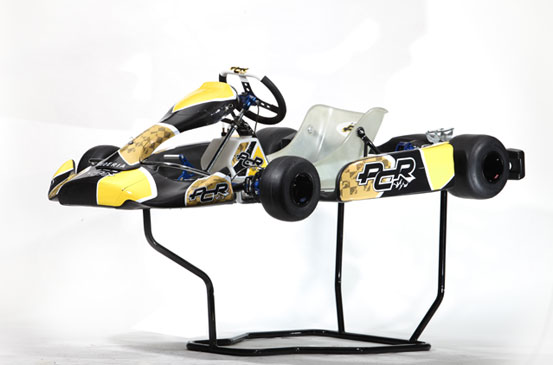

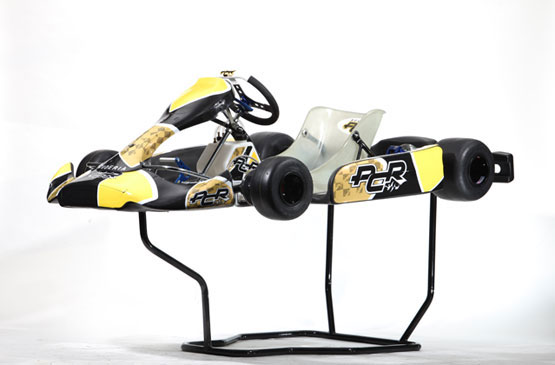

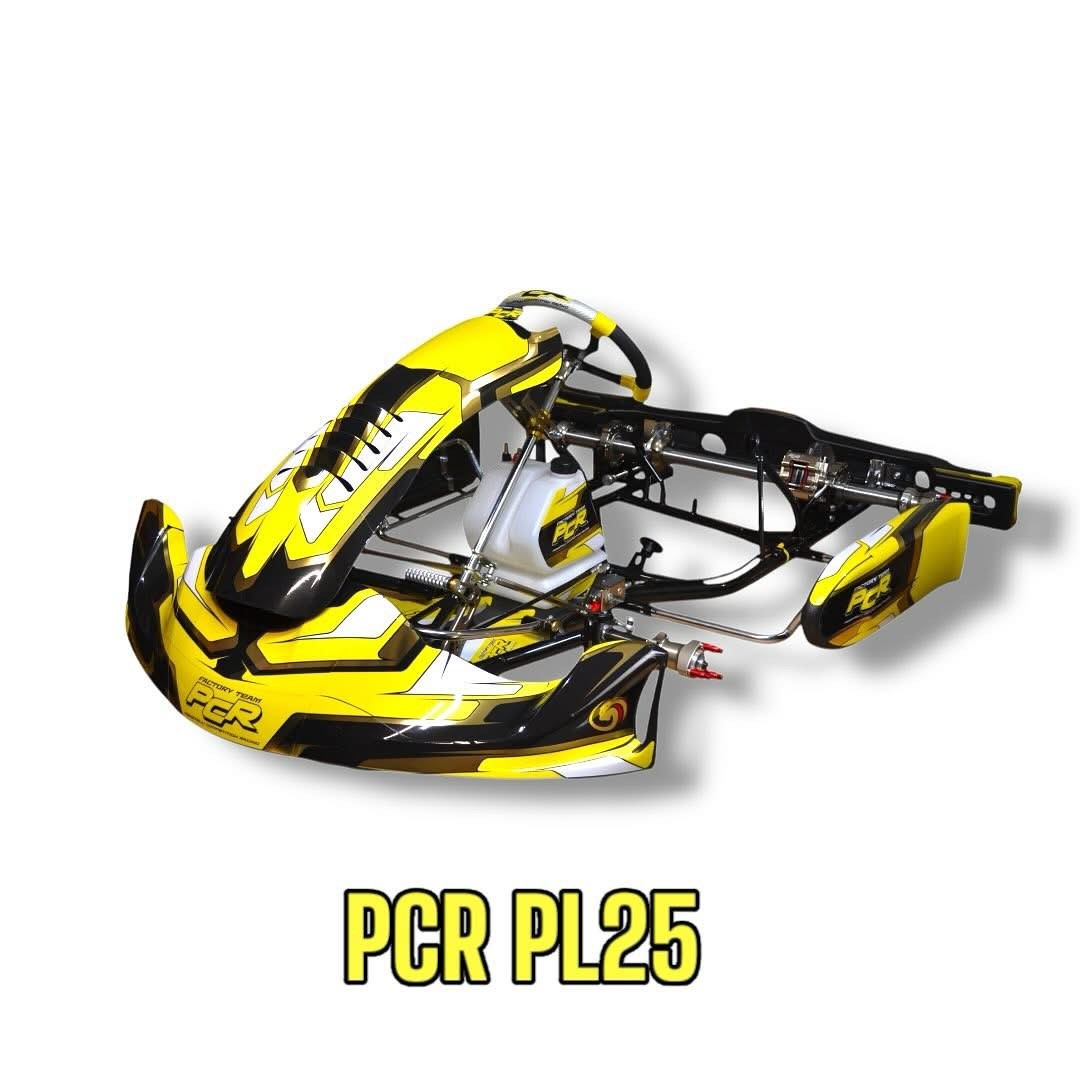

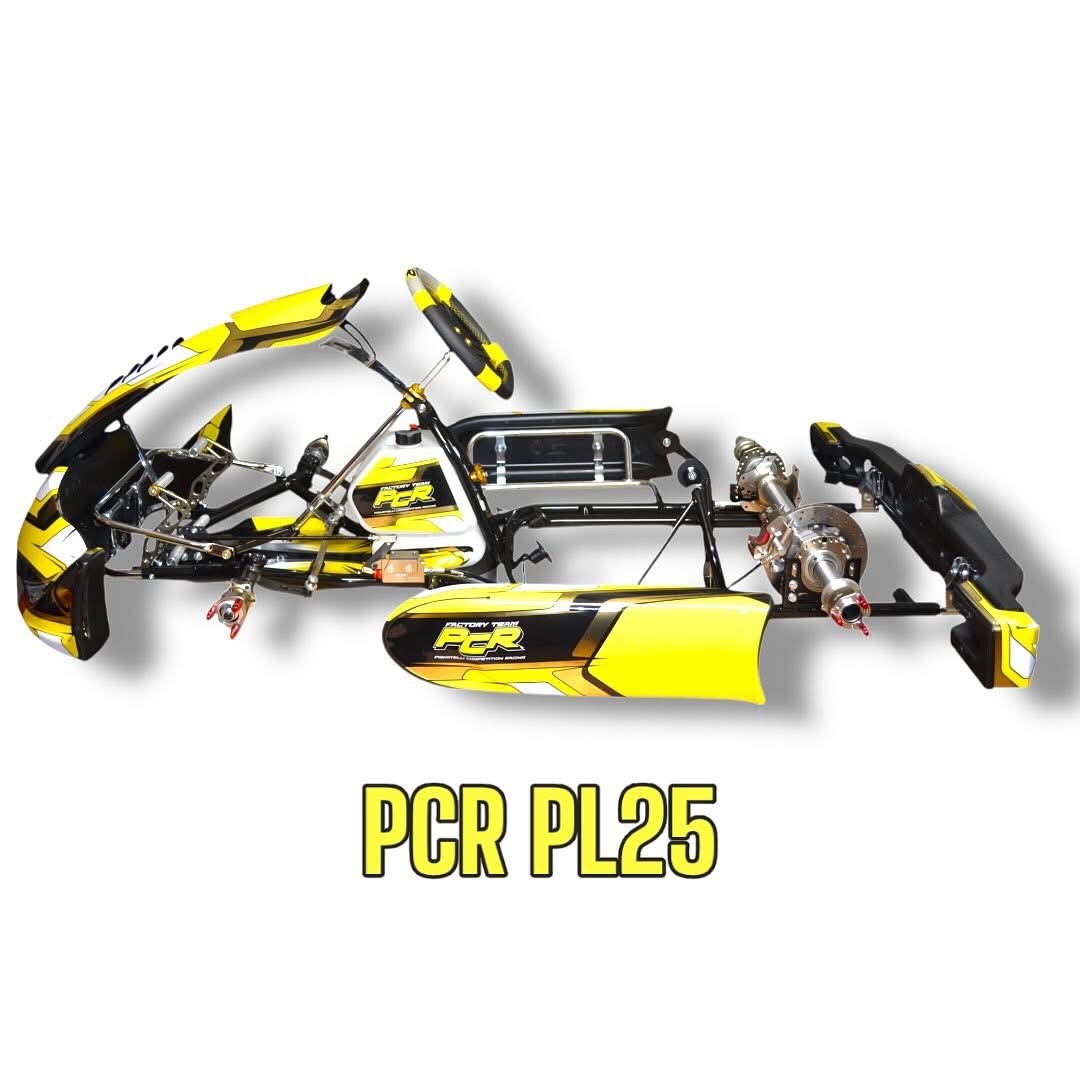

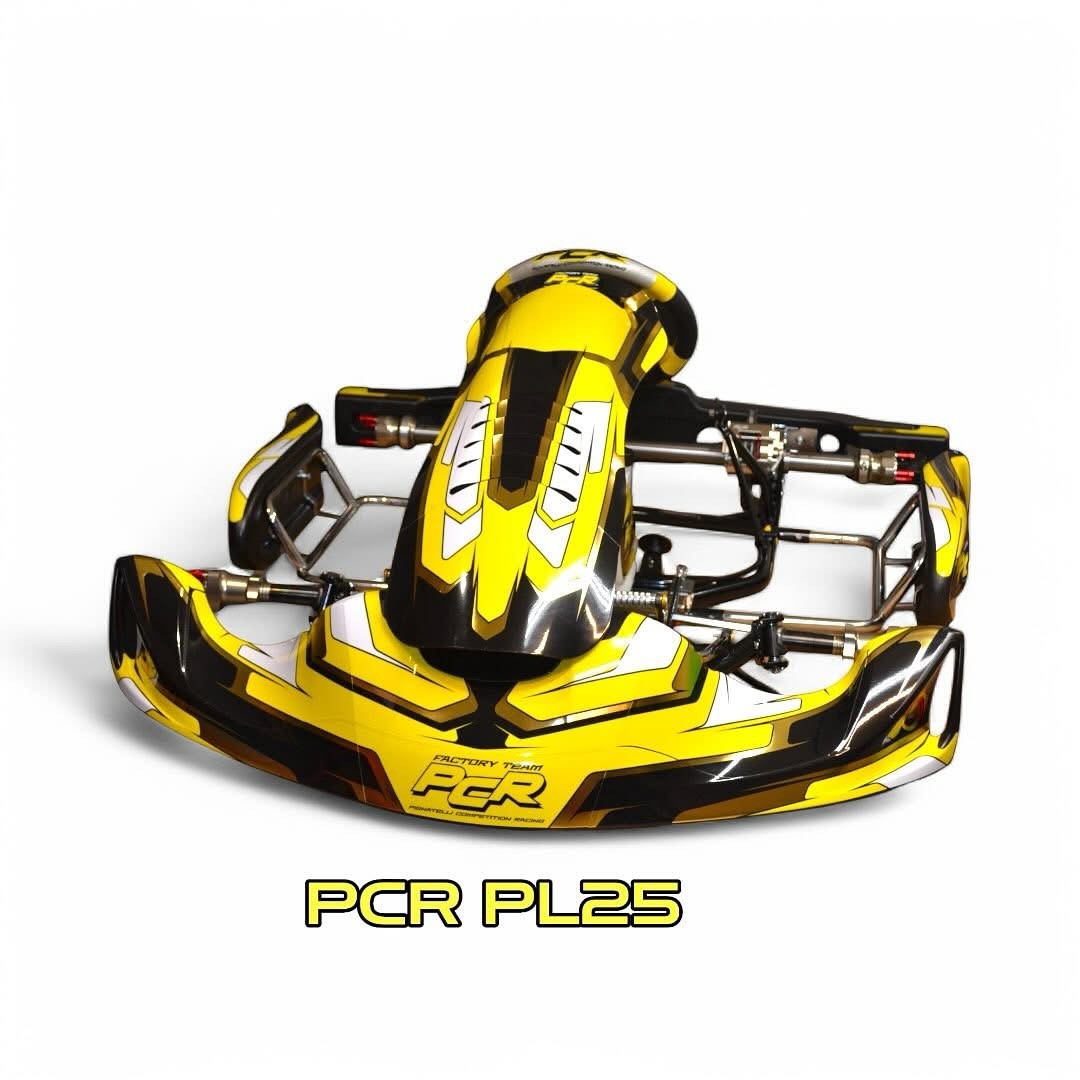

PL25 product details
Model: PL25
Homologation: 73/CH/11
Category: SKF, KF2, KF3/KZ1, KZ2/TaG

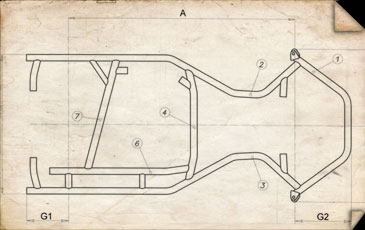

Tubes: CrMo Steel
Wheelbase: 1.045 mm
Tube diameters: 32 mm (one 30 mm version)
Front bar: Can be assembled
Side bar: Can be assembled
Rear bar: Can be assembled
Braking system: K125 R (homologated 189/FR/14). Rear brake.
Front brake calliper:
Front brake disk:

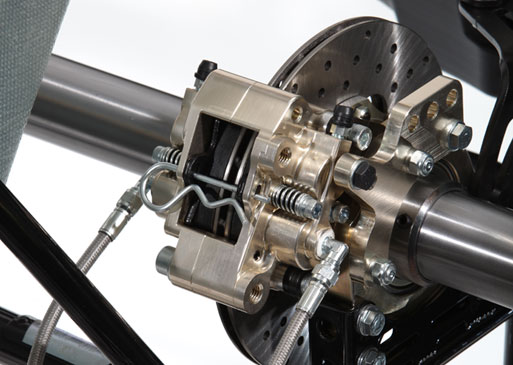

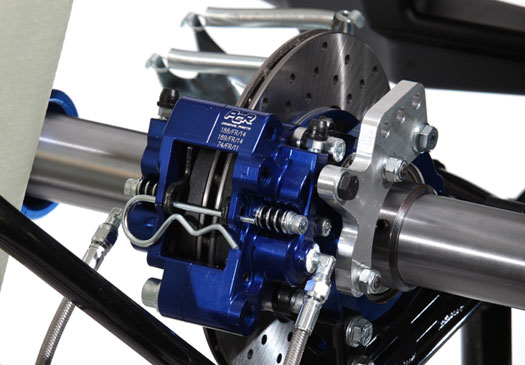

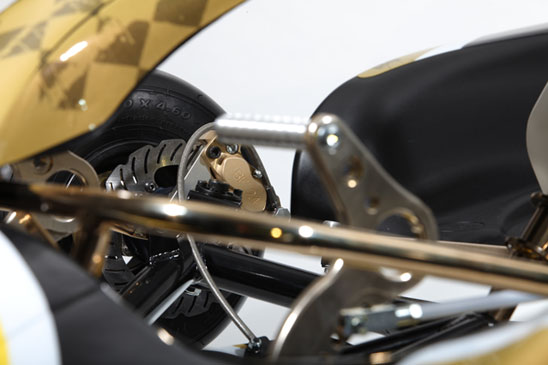

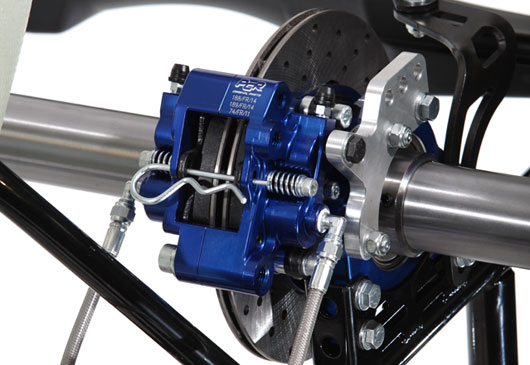

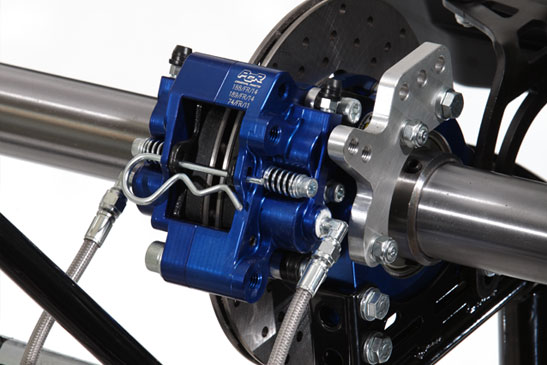

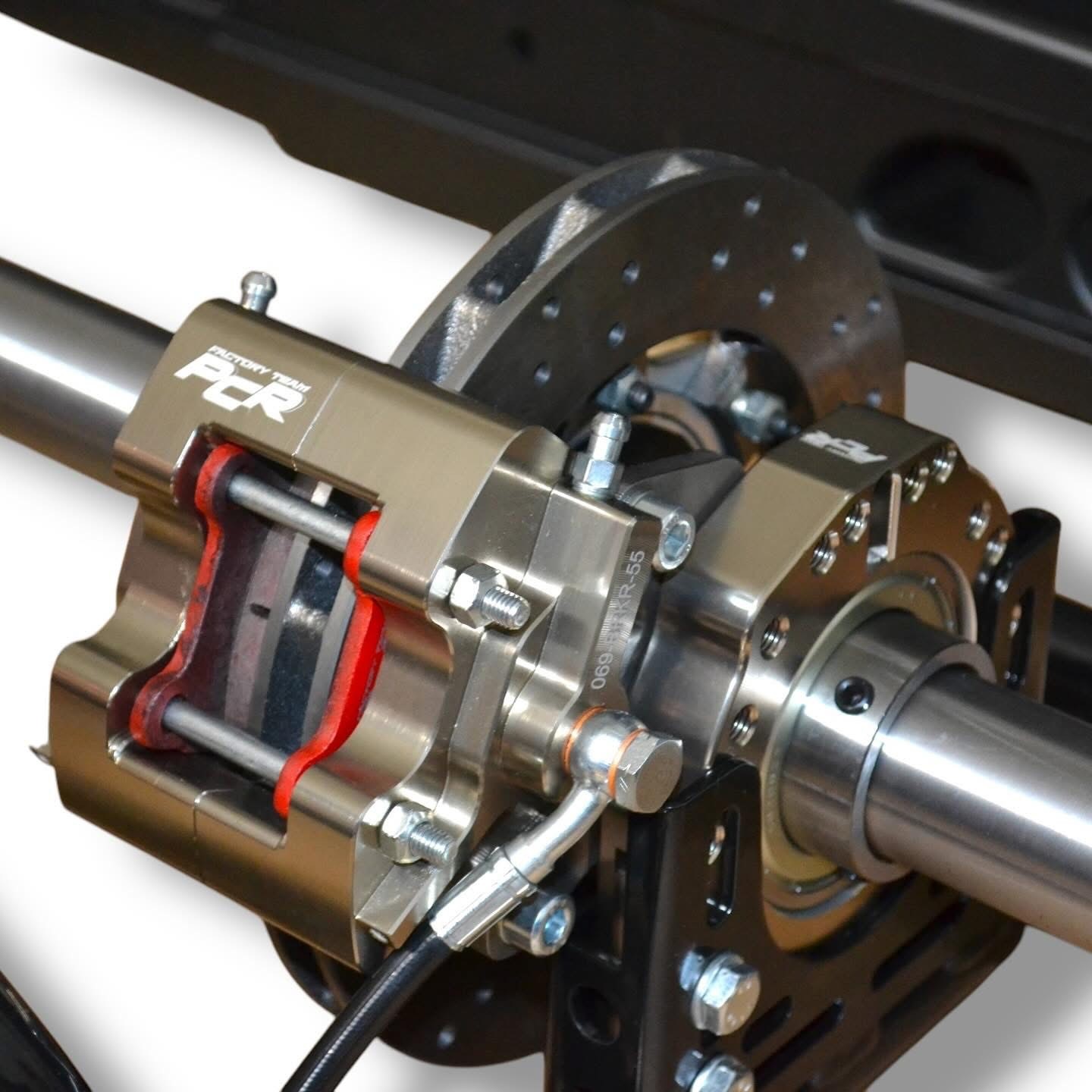

Rear brake calliper: 4 pistons (2 x 19 mm, 2 x 22.5 mm)
Rear brake disk: 1 in pig iron, 202 mm diameter and 11 mm thick
Brake hose: Aeronautic PVC coated version

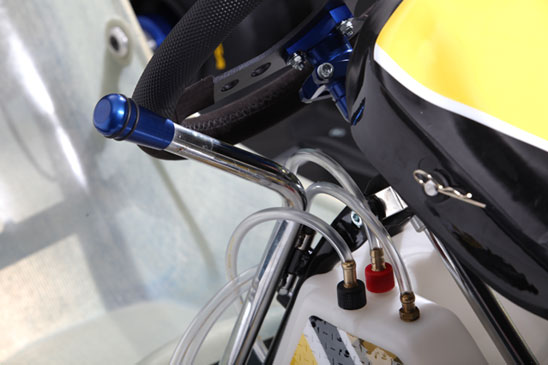

Fuel tank capacity: 8 litres
Height adjustment: Front/Rear

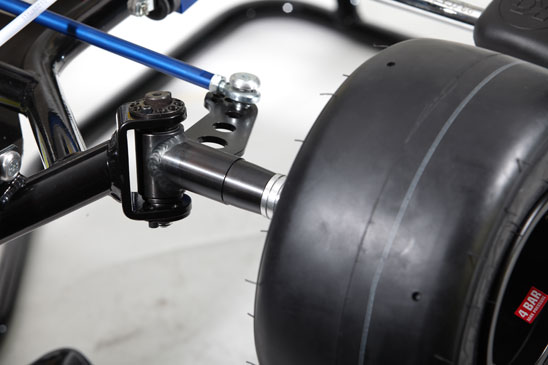

Front adjustment: Caster and camber with eccentrics

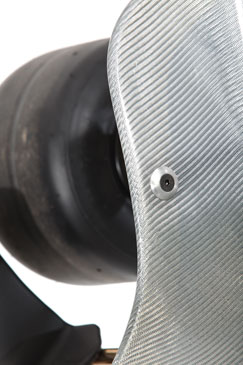

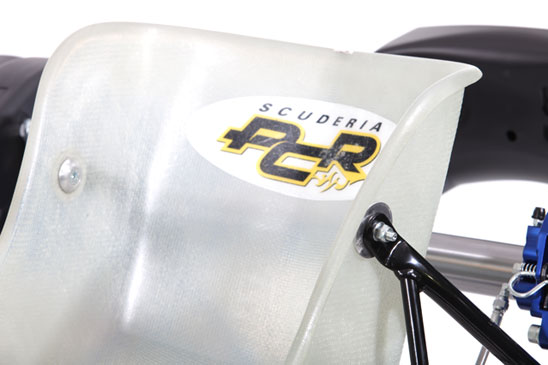

Seat: In resin

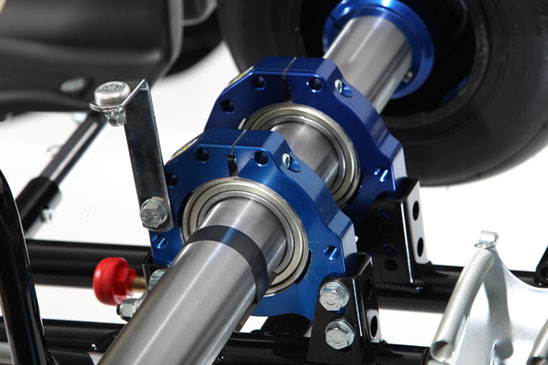

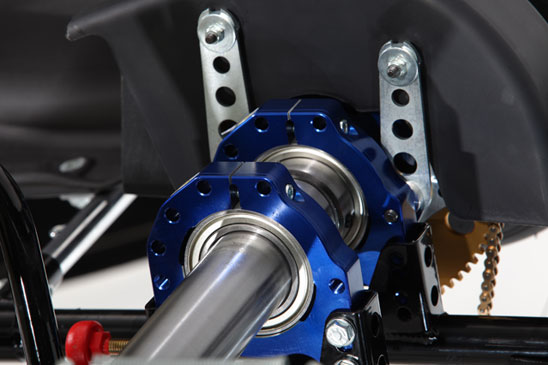

Number of rear bearings: 3

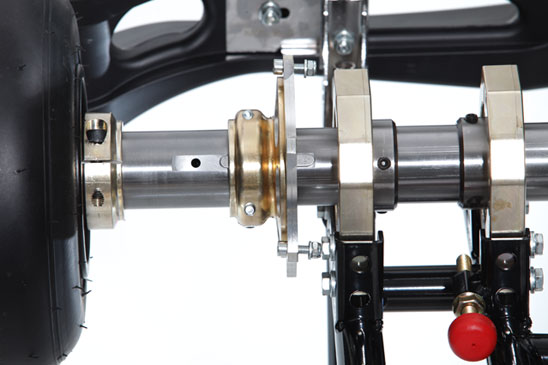

Axle: 50x1.030 mm

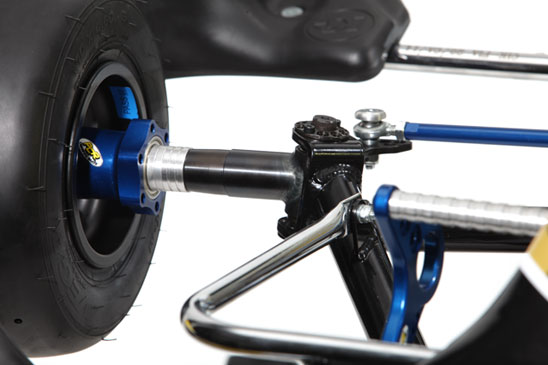

Front wheel hubs: In anodized aluminium
Rear wheel hubs: In anodized aluminium
Front wheel rims: 5 inches x 130 mm in one-piece magnesium
Rear wheel rims: 5 inches x 212 mm in one-piece magnesium

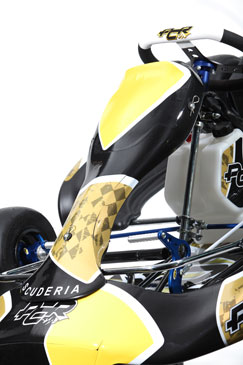

Fairing: Standard
Fairing adhesive kit: Standard

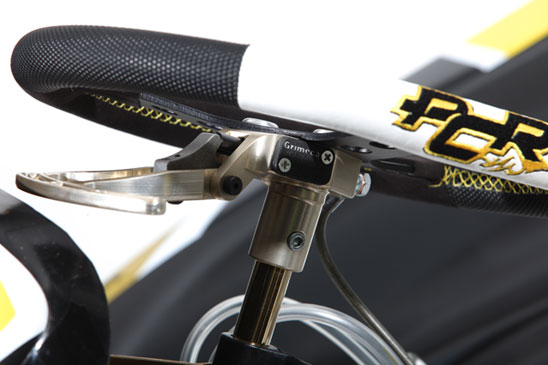

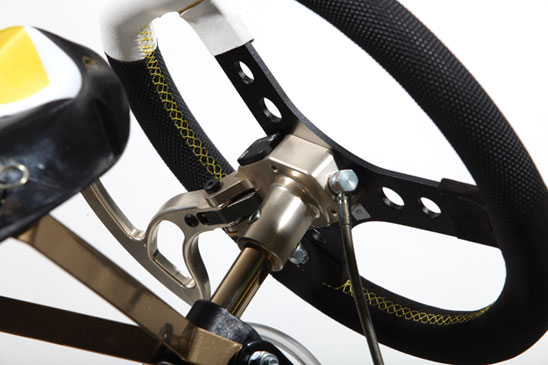

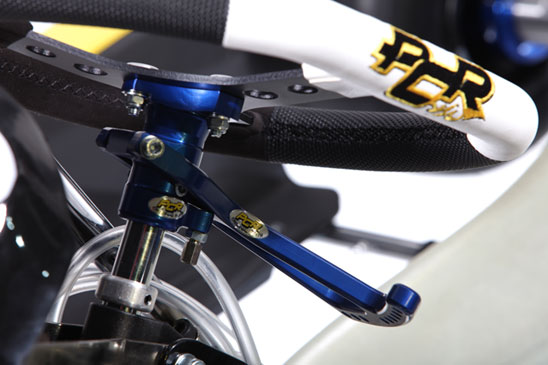

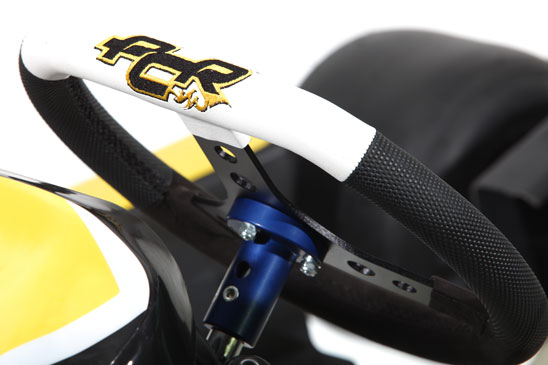

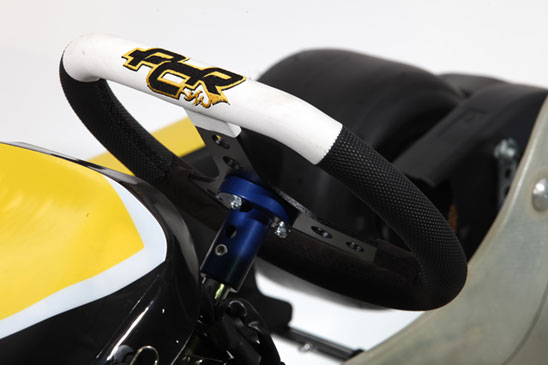

Steering wheel: in suede leather
